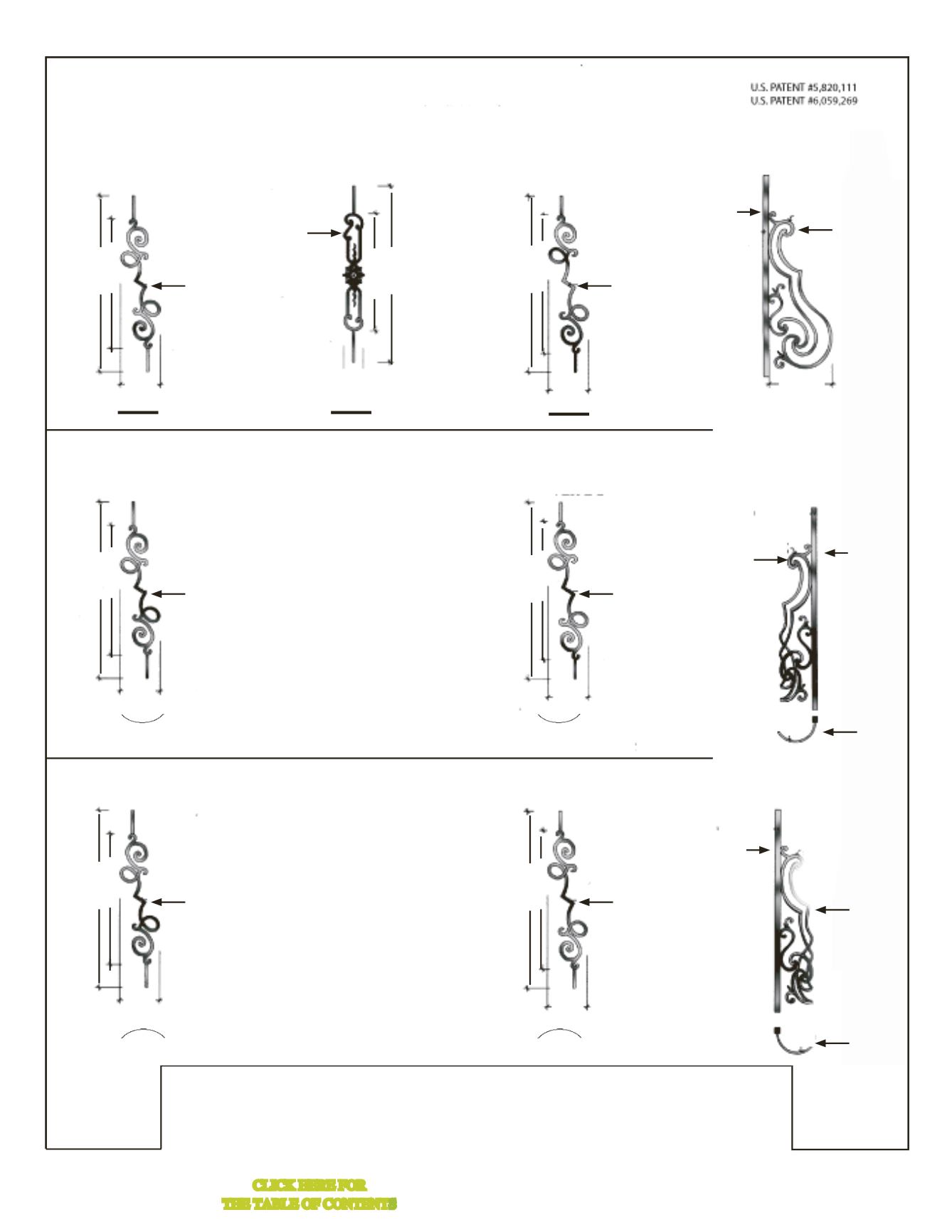

Regency Verona Railings All Painted With A Flat Black Primer
Verona
SCALE:1/2"-1'-0"
Note:All regency railing 1's are for straight & down rail.
Note:All regency railing 3's are for curved radius staircases looking up from the bottom. panels labeled as 3's always go to the left
Note:All regency railing 2's are for curved radius staircases looking up from the bottom. panels labeled as 2's always go to the right.
VER-C1
Fits Only Incline
Angels Below 40°
TOP-VIEW
All Radius
From 30 inches to 20 ft.
TOP-VIEW
All Radius
From 30 inches to 20 ft.
VER-D
Fits All Angels
Or Level Balcony
VER-E1
Fits Only Angels
Above 40°
VER-TERM-L
Left Termination
Right Side View
VER-TERM
Termination
4 1/2"
Radius
TOP-VIEW
All Radius
From 30 inches to 20 ft.
VER-C2
VER-E2
VER-E3
TOP-VIEW
All Radius
From 30 inches to 20 ft.
42"
31"
9 1/2"
4 1/2"
Radius
VER-TERM-R
Right Termination
Left Side View
VER-C3
42"
31"
42"
31"
9 1/2"
9 1/2"
9 1/2"
9 1/2"
9 1/2"
42"
33"
42"
33"
42"
33"
28"
42"
1 1/4"W
x
48" H
9/16"
SQUARE
IRON
1/2"
SQUARE
IRON
1/2"
SQUARE
IRON
1/2"
SQUARE
IRON
1/2"
SQUARE
IRON
1/2"
SQUARE
IRON
1/2"
SQUARE
IRON
Note:
Piece C1,C2,C3 Is
Used
On All Inclines
Below
40°
Piece E1,E2,E3 Is
Used
On All Inclines
Above
40°
1/2"
SQUARE
IRON
1/2"
SQUARE
IRON
1 1/4"W
x
48" H
1 1/4"W
x
48" H
1/2"
SQUARE
IRON
TOP-VIEW
FLAT
TOP-VIEW
FLAT
TOP-VIEW
FLAT
15"
4 5/8"
ALL REGENCY
RAILING IS SHIPPED
FOB
NEW ORLEANS,
LA.70122
OR
DALLAS TX..75207
ALL REGENCY
RAILING IS SHIPPED
FOB
NEW ORLEANS,
LA.70122
OR
DALLAS TX..75207
