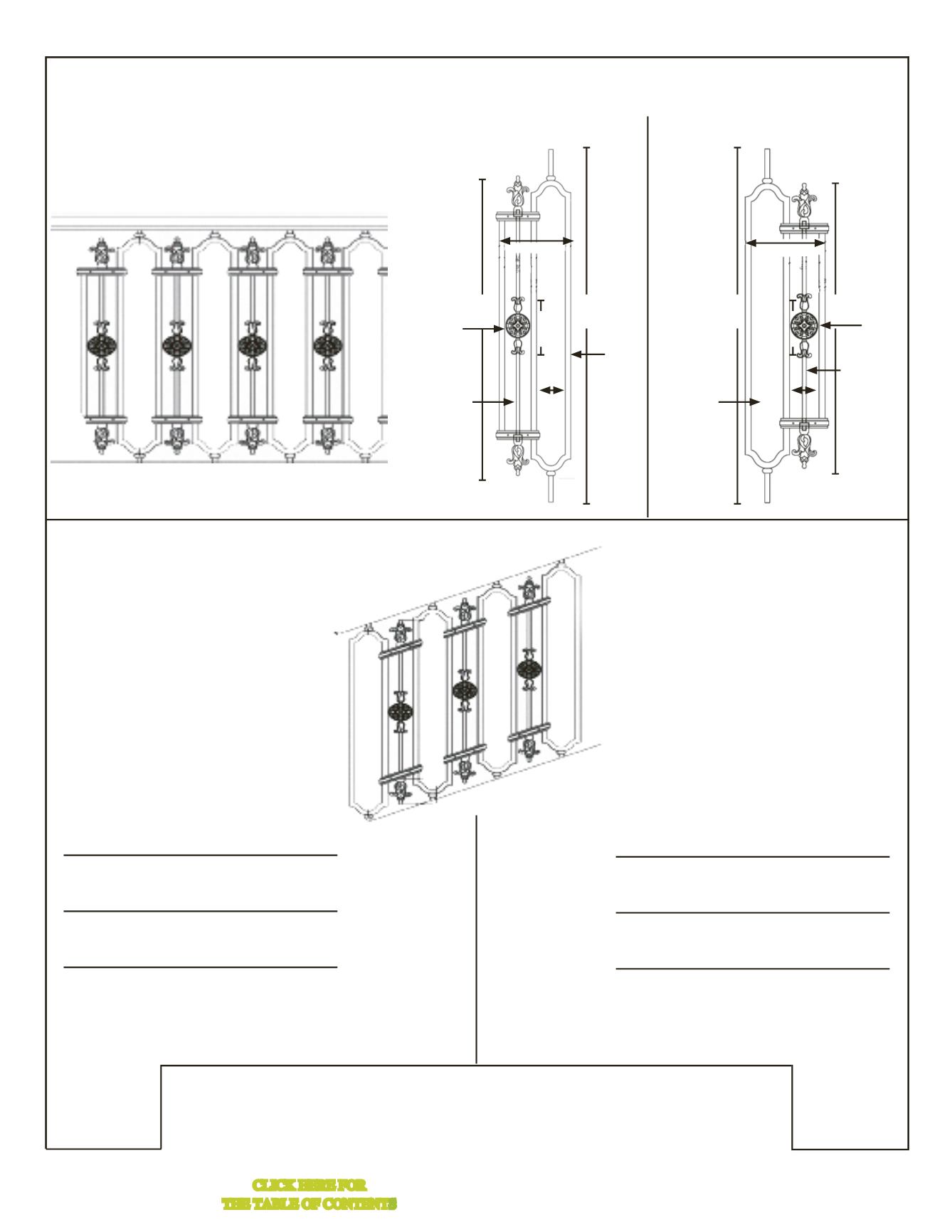

Regency Windsor2 Railings All Painted With A Flat Black Primer
Windsor2
SCALE:3/4"-1'-0"
ALL REGENCY
RAILING IS SHIPPED
FOB
NEW ORLEANS,
LA.70122
OR
DALLAS TX..75207
ALL REGENCY
RAILING IS SHIPPED
FOB
NEW ORLEANS,
LA.70122
OR
DALLAS TX..75207
Level Handrail
Sloped Handrail
U.S.PATENT # 7,594,643
WIN2-36
Balcony Level Configuration
WIN2-40
Balcony Level Configuration
Balcony Sloped Configuration
Is The Same Configuration as
WIN2-40 except the
Two Collars are made
for a sloped railing
#
WIN2-4021=(40” High x 21° to 27° Slope)
#
WIN2-4028=(40” High x 28° to 34° Slope)
#
WIN2-4035=(40” High x 35° to 42° Slope)
#
WIN2-4043=(40” High x 43° to 49° Slope)
Balcony Sloped Configuration
Is The Same Configuration as
WIN2-36 except the
Two Collars are made
for a sloped railing
#
WIN2-3621=(36” High x 21° to 27° Slope)
#
WIN2-3628=(36”High x 28° to 34° Slope)
#
WIN2-3635= (36”High x 35° to 42° Slope)
#
WIN2-3643= (36”High x 43° to 49° Slope)
In Reference To The Windsor2 Railing
All The Components Are Seperate &
Sold As A Set =
(1 Hoop With Shoulder,2 Collars,2 Fleu De Lis,2 Rods,1 Medallion)
Note:Windsor Series Could Be Welded Or C
an
B
e
E
asily
A
ssembled
B
y
U
sing
T
he
C
ollars
T
o
S
ecure
T
he
S
pindle
W
ith
A
llen
B
olts
T
hat
P
inches
T
he
C
ollars
T
ogether
T
o
T
he
H
oops
8 1/8"
3 1/4”
36”
29”
6 1/2”
8 1/8"
3 1/4”
40”
34”
6 1/2”
3/8"
ROUND
5/8"
SQUARE
3/8"
ROUND
5/8"
SQUARE
2 3/4"
MEDALLION
2 3/4"
MEDALLION
