WEDGE CONNECTORS FOR 1 1/4”,1 1/2” & 2” SCH. 40 PIPE”
SIZE OF SCHEDULE
40 PIPE
FOR 2”
I.D=2.067”
OD=2.375”
SIZE OF SCHEDULE
40 PIPE
FOR 1 1/2”
I.D=1.610”
OD=1.900”
SIZE OF SCHEDULE 40
PIPE
FOR 1 1/4”
I.D=1.380”
OD=1.66O”

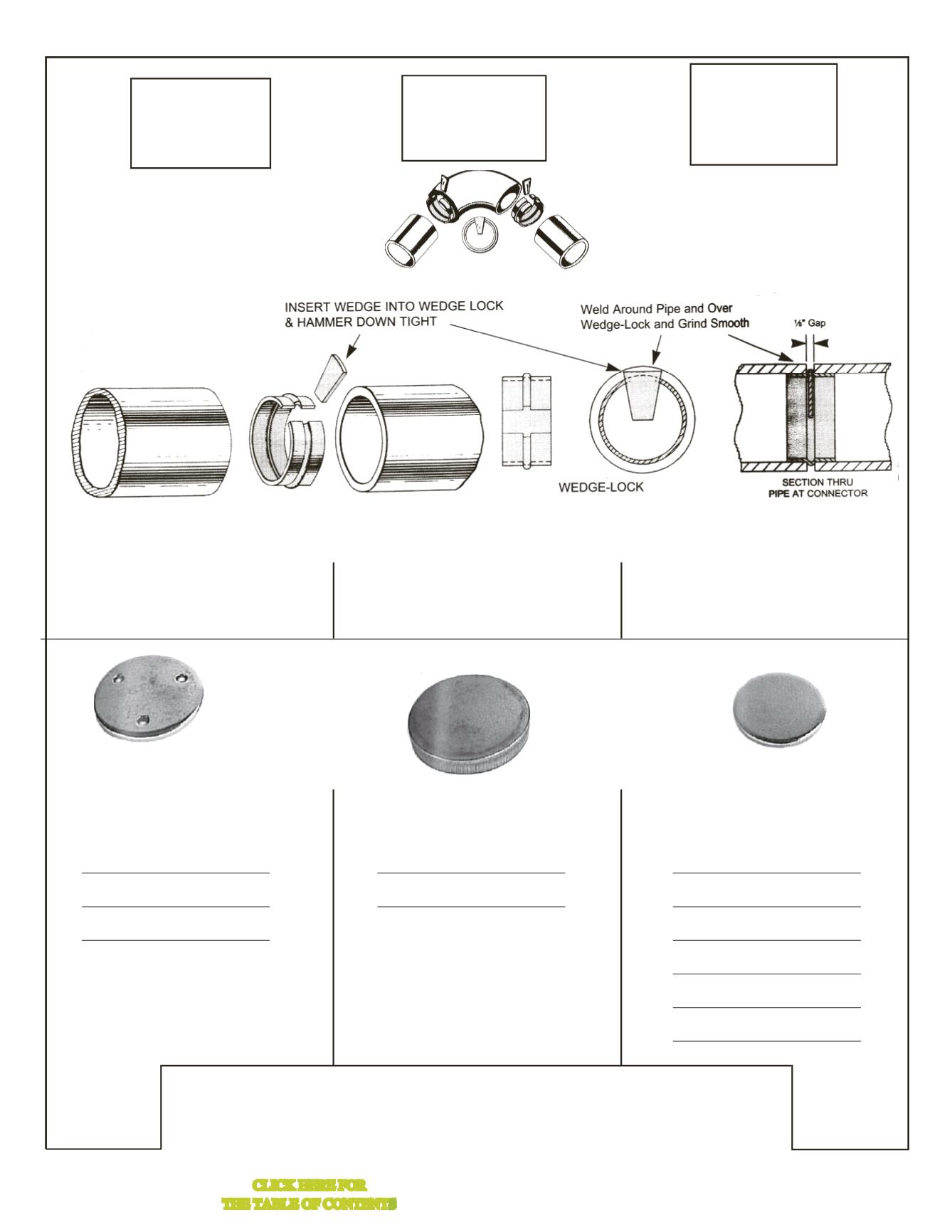

WEDGE-LOCK WELDING CONNECTORS FOR 1 1/4”1 1/2” & 2” SCH.40 STEEL PIPE
PLACE CONNECTOR IN EACH END OP PIPE,UNTIL ENDS TOUCH RIB.
INSERT WEDGE INTO GROVE OF CONNECTOR AND HAMMER DOWN IN PLACE
CONNECTOR WILL EXPAND AGAINST WALL,LINING UPAND LOCKING PIPE TOGETHER,
READY FOR WELDING
# W-1023
(WEDGE-LOCK)
FITS 1 1/4” PIPE
# W-1033
(WEDGE-LOCK)
FITS 1 1/2” PIPE
# W-1043
(WEDGE-LOCK)
FITS 2” PIPE
WILL TAKE MORE THAN 100 LBS.TENSION
TO SIMPLIFYALIGNMENT BEFORE WELDING
* NO CHAMFERING NECESSARY
* ALIGN USING WEDGE-LOCK WELDING CONNECTOR
* WELD
* MINIMIZE GRINDING TIME
ROUND DISK WITH OR WITHOIT HOLES
DIAM. THICK MODEL
NUMBER
3"................. .1/4".. ...... D-143H
3 1/2"........... .1/4".. ...... D-173H
4"................. .1/4". ....... D-203H
4 1/2" .......... .1/4".. ...... D-246H
Round Disk Has
Three 5/16"Holes
DIAM. THICK MODEL
NUMBER
3"................. .3/8".. ...... D-500
4"................. .3/8".. ...... D-502
6"................. .3/8". ....... D-506
DIAM. THICK MODEL
NUMBER
1"................. .1/8".. ...... D-001
1"................. .1/4".. ...... D-009
*1 1/2"......... 1/8". ........ IM-112
*1 5/8"......... 1/8". ........ IM-158
*1 7/8"......... 1/8". ........ IM-178
*3"............... 1/8". ........ IM-318
*3"............... 1/4". ........ IM-314
MADE IN
U.S.A.
MADE IN
U.S.A.
MADE IN
U.S.A.
*IMPORT
