SIZE OF SCHEDULE 40 PIPE
FOR 2”
I.D=2.067”
OD=2.375”
SIZE OF SCHEDULE 40 PIPE
FOR 2”
I.D=2.067”
OD=2.375”
# 3230-D
(WELD & GRIND)
FITS 2”
SCH-40-PIPE
1 3/8”
3/16” 1/2” 1 3/8” 3/16”
# 3213-A
(DRIVE ON)
FITS 2”
SCH-40-PIPE
# 3230-F
(WELD & GRIND)
FITS 2”
SCH-40-PIPE
# 3221-C
(WELD & GRIND)
FITS 2”
SCH-40-PIPE
# 3288-E
(DRIVE ON)
FITS 2”
SCH-40-PIPE
4 7/8”
# 2542
(PLAIN)
FITS 2”
SCH-40-PIPE
3/8”
THICKNESS
OF FLANGES
.134”
# 1896-A
(WELD & GRIND)
FITS 2”
SCH-40-PIPE
90° TEE CONNECTOR
Model Inside Degree Pipe Wall O.D. Center Line Center To
Number Radius (r) Of Elbow Size Thick. Radius(R) Center (C-C) .
392-35.................. 1"..................... 35°..........................................................2".................. .154".............. 2.375"................2.188" (WITH A SEAM)
398-45.................. 1"..................... 45°..........................................................2".................. .154".............. 2.375"................2.188" (WITH A SEAM)
404-55.................. 1"..................... 55°..........................................................2".................. .154".............. 2.375"................2.188" (WITH A SEAM)
410-90.................. 1"..................... 90°..........................................................2".................. .154".............. 2.375"................2.188" (WITH A SEAM)
394-35.................. 2"..................... 35°..........................................................2".................. .134".............. 2.375"................3.188" (WITH A SEAM)
396-45.................. 2"..................... 45°..........................................................2".................. .134".............. 2.375"................3.188" (WITH A SEAM)
400-55.................. 2"..................... 55°..........................................................2".................. .134".............. 2.375"................3.188" (WITH A SEAM)
402-90.................. 2"..................... 90°..........................................................2".................. .134".............. 2.375"................3.188" (WITH A SEAM)
7181-35................ 5"..................... 35°..........................................................2".................. .154".............. 2.375"................6.188" (NO SEAM)
7183-45................ 5"..................... 45°..........................................................2".................. .154".............. 2.375"................6.188" (NO SEAM)
7185-55................ 5"..................... 55°..........................................................2".................. .154".............. 2.375"................6.188" (NO SEAM)
7187-90................ 5"..................... 90°..........................................................2".................. .154".............. 2.375"................6.188" (NO SEAM)
7189-7.................. 5"..................... 90° W/TWO 2" TANGENTS.................2".................. .154".............. 2.375"................6.188" (NO SEAM)
7194-B................. 5"..................... 180° W/TWO 3" TANGENTS...............2".................. .154".............. 2.375"................6.188" (NO SEAM) ...............12.375" (UNTRIMMED)
NOTE: ALL OF THE 5" RADIUS ELBOWS ARE WITHOUT A SEAM
With a
seam

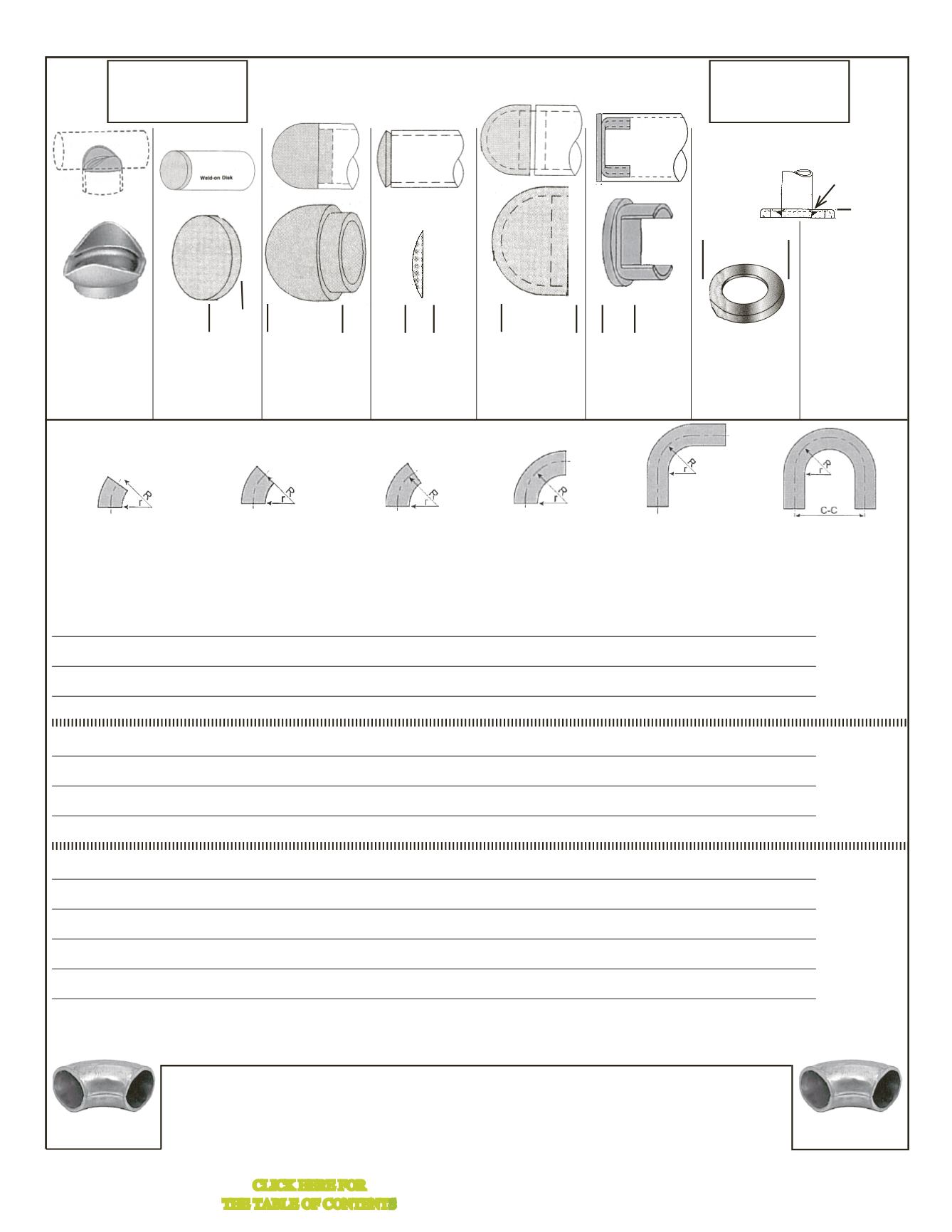

END CAPS,FLANGES,& ELBOWS FOR 2” SCH. 40 PIPE
With a
seam
MADE IN
U.S.A.
MADE IN
U.S.A.
Elbow 35 degree
(With a seam)
Elbow 45 degree
(With a seam)
Elbow 55 degree
(With a seam)
Elbow 90 degree
(With a seam)
Elbow 90 degree
with two 2" tangents
(Without a seam)
Elbow 180 degree
with two 2" tangents
(Without a seam)
