SIZE OF SCHEDULE 40
PIPE
FOR 1 1/4”
I.D=1.380”
OD=1.66O”

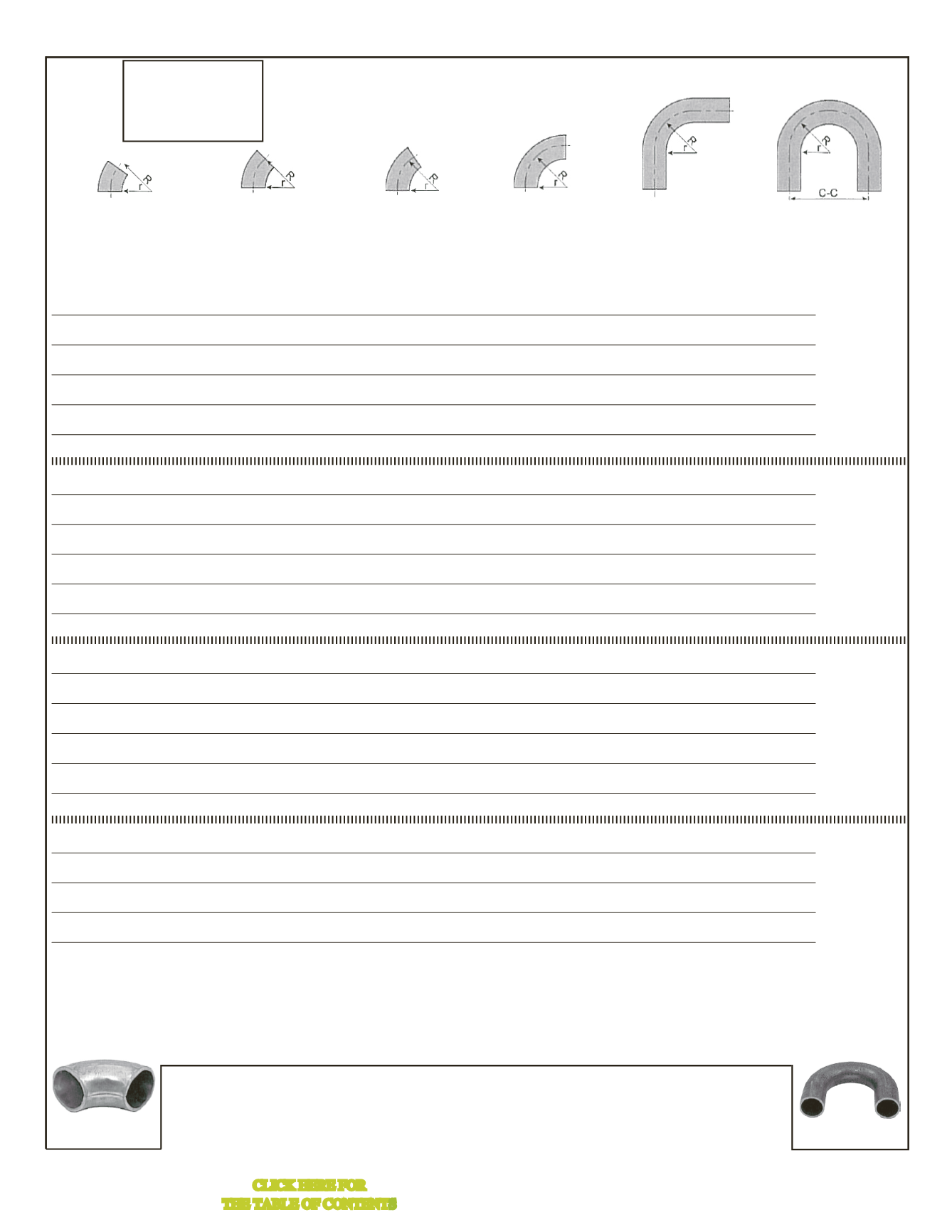

ELBOWS FOR 1 1/4” SCH. 40 PIPE
Model Inside Degree Pipe Wall O.D. Center Line CENTER TO
Number Radius (r) Of Elbow Size Thick. Radius(R) Center (C-C) .
248-35.................. 1"..................... 35°..........................................................1 1/4"............ .140".............. 1.660"................1.830" (WITH A SEAM)
254-45.................. 1"..................... 45°..........................................................1 1/4"............ .140".............. 1.660"................1.830" (WITH A SEAM)
260-55.................. 1"..................... 55°..........................................................1 1/4"............ .140".............. 1.660"................1.830" (WITH A SEAM)
266-90.................. 1"..................... 90°..........................................................1 1/4"............ .140".............. 1.660"................1.830" (WITH A SEAM)
266-2.................... 1"..................... 90° W/TWO 2" TANGENTS.................1 1/4"............ .140".............. 1.660"................1.830" (NO SEAM)
266-4.................... 1"..................... 180° W/TWO 2" TANGENTS...............1 1/4"............ .140".............. 1.660"................1.830" (NO SEAM) ............... 3.660"
4431-35................ 1 5/8"............... 35°..........................................................1 1/4"............ .140".............. 1.660"................2.455" (WITH A SEAM)
4432-45................ 1 5/8"............... 45°..........................................................1 1/4"............ .140".............. 1.660"................2.455" (WITH A SEAM)
4433-55................ 1 5/8"............... 55°..........................................................1 1/4"............ .140".............. 1.660"................2.455" (WITH A SEAM)
4434-90................ 1 5/8"............... 90°..........................................................1 1/4"............ .140".............. 1.660"................2.455" (WITH A SEAM)
4723-290.............. 1 5/8"............... 90° W/TWO 2" TANGENTS.................1 1/4"............ .140".............. 1.660"................2.455" (NO SEAM)
4639-180.............. 1 5/8"............... 180° W/TWO 2" TANGENTS...............1 1/4"............ .140".............. 1.660"................2.455" (NO SEAM) ............... 4.900"
250-35.................. 2"..................... 35°..........................................................1 1/4"............ .140".............. 1.660"................2.830" (WITH A SEAM)
256-45.................. 2"..................... 45°..........................................................1 1/4"............ .140".............. 1.660"................2.830" (WITH A SEAM)
262-55.................. 2"..................... 55°..........................................................1 1/4"............ .140".............. 1.660"................2.830" (WITH A SEAM)
268-90.................. 2"..................... 90°..........................................................1 1/4"............ .140".............. 1.660"................2.830" (WITH A SEAM)
269-7.................... 2"..................... 90° W/TWO 2" TANGENTS.................1 1/4"............ .140".............. 1.660"................2.830" (NO SEAM)
269-6.................... 2"..................... 180° W/TWO 2" TANGENTS...............1 1/4"............ .140".............. 1.660"................2.830" (NO SEAM) ............... 5.660"
7063-45................ 5"..................... 45°..........................................................1 1/4"............ .140".............. 1.660"................5.830" (NO SEAM)
7065-55................ 5"..................... 55°..........................................................1 1/4"............ .140".............. 1.660"................5.830" (NO SEAM)
7067-90................ 5"..................... 90°..........................................................1 1/4"............ .140".............. 1.660"................5.830" (NO SEAM)
7069-7.................. 5"..................... 90° W/TWO 2" TANGENTS.................1 1/4"............ .140".............. 1.660"................5.830" (NO SEAM)
7074-B................. 5"..................... 180° W/TWO 3" TANGENTS...............1 1/4"............ .140".............. 1.660"................5.830" (NO SEAM) ............... 11.660" (Untrimmed)
NOTE: ALL OF THE 5" RADIUS ELBOWS ARE WITHOUT A SEAM
Elbow 35 degree
(With a seam)
Elbow 45 degree
(With a seam)
Elbow 55 degree
(With a seam)
Elbow 90 degree
(With a seam)
Elbow 90 degree
with two 2" tangents
(Without a seam)
Elbow 180 degree
with two 2" tangents
(Without a seam)
Without a
seam
With a
seam
