The hinges will be perpendicular to the road surface when properly in-
stalled.There will be an imaginary line running through the center of both
hinges as shown in figue 1
.
STEP 1:
Stand the gate in the open position as shown in Figure 2.Open hinges 90
degrees with the yoke extensions flat against the post
and the gate extensions flat against the end rails of the gate as shown in
Figure 2.Tack weld the yoke extensions to the gate
post.DO NOT tack weld the gate extensions.
*NOTE:iT MAY BE NECESSARY TO ELEVATE THE FAR END OF
THE GATE TO ALLOW FOR THE WEIGHT OF THE SUSPENDED
GATE AFTER INSTALLATION.
STEP 2:
Tack weld the gate extensions to the gate in the
closed position as shown in Figure 3
STEP 3:
Verify the gate opens and closes as desired.Adjust as necessary to achieve
proper gate movement and alignment.Securely weld extensions to the
post and gate after gate movement and alignment have been confirmed.
STEP 4:
Remove any excess material form the extensions.Grind all sharp edges.
Paint all bare metal and welds as necessary.Lubricate both hinges prior to
use with a grease gun.Do not over lubricate hinges.Gate will be slightly
canted when gate is in the open position as shown in Figue 4.

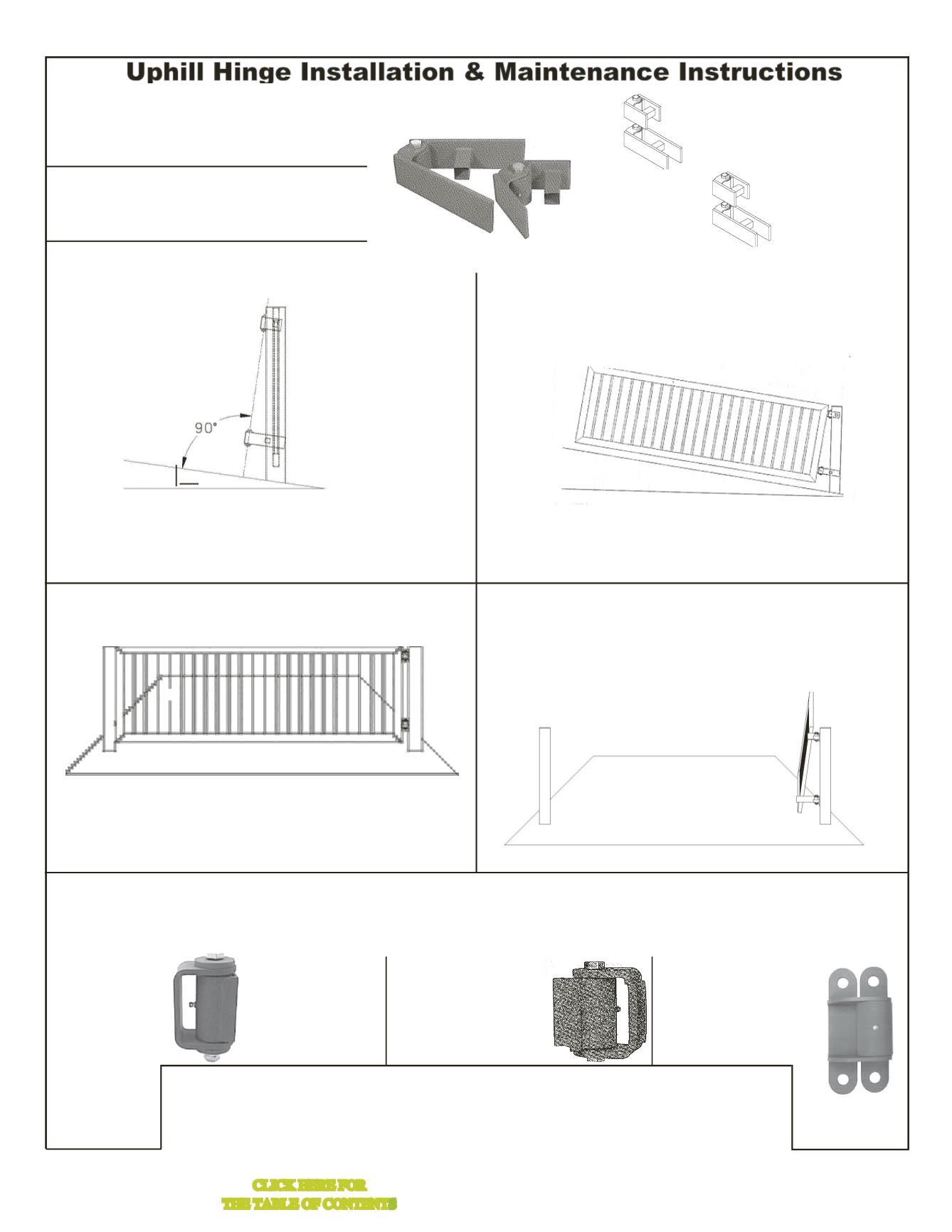

GUARDIAN HEAVY DUTY UPHILL & ADJUSTABLE HINGES
FIGURE 1
FIGURE 2
FIGURE 3
FIGURE 4
MODEL #
GU-2190
(SOLD IN PAIRS.)
Rated to 2000 lbs per set
MODEL #
GU-2195
(SOLD IN PAIRS.)
Rated to 600 lbs per set
MODEL #
GU-31
(SOLD EA.)
Rated to 1000 lbs per pair
(FLAT MOUNT BOTH SIDES)
Adjusts from:
2 15/16”to 3 3/16”
MODEL #
GU-32R
(SOLD EA.)
Rated to 1000 lbs per pair
(ROUND MOUNT BOTH SIDES)
Adjusts from:
3 9/16”to 3 15/16”
Adjusts from:
3 9/16”to 3 15/16”
MADE IN THE USA
Sold In Sets
MODEL #
GU-315
(SOLD EA.)
Rated to 1000 lbs per pair
(ROUND MOUNT BOTH SIDES)
Adjusts from:
3 7/16”to 3 11/16”
3 5/8”
1 1/2”
8”
NOTE:
ALL GREASE FITTING HAS TO BE LUBRICATED FOR
THE FIRST TIME WITH AMULTI PURPOSE GREASE AFTER
THAT ONE PUMP EVERY 3 MONTHS SHOULD BE
SUFFICIENT UNDER NORMAL OPERATING CONDITIONS
The adjustable hinge is a dependable and reliable as our
standard hinge with the advantage of adjustability
NOTE:
ALL GREASE FITTING HAS TO BE LUBRICATED FOR
THE FIRST TIME WITH AMULTI PURPOSE GREASE AFTER
THAT ONE PUMP EVERY 3 MONTHS SHOULD BE
SUFFICIENT UNDER NORMAL OPERATING CONDITIONS
