215
Orleans Ornamental Iron & Casting Dist.,Inc.
2860 Arts St., New Orleans, La. 70122
Tel: (504) 945-4466 Fax: (504) 947-4363 Toll: (800)824-3608
TYPE OF MODEL L D WEGHT D/S
MATERIAL NO. LENGTH PIN DIA. LOAD PER CROSS SECTION
PAIR
STEEL----------------
FIX-2
- -------------------------- 2”------------- 3/16"-------------150 LBS - - - 5/16" - -13/32"
STEEL (1015) WITH FIXED STEEL PIN & BRASS WASHER
STEEL----------------
FIXBRASS-2
- -------------- 2”------------- 3/16"-------------120 LBS - - - 5/16" - -13/32"
STEEL (1015) WITH FIXED BRASS PIN & BRASS WASHER
STAINLESS ---------
FIXSTAIN-238
- ----------- 2 3/8”-------- 1/4”---------------200 LBS - - - 13/32” 15/32
STAINLESS (304) WITH STAINLESS STEEL FIX PIN & STAINLESS WASHER
STEEL----------------
FIX-3
- -------------------------- 3 3/16”------- 5/16"-------------300 LBS - - - 1/2" - - 5/8"
STEEL (1015) WITH FIXED STEEL PIN & BRASS WASHER
STEEL----------------
FIXBRASS-3
- -------------- 3 3/16”------- 5/16"-------------240 LBS - - - 1/2" - 5/8"
STEEL (1015) WITH FIXED BRASS PIN & BRASS WASHER
ALUMINUM- -------
FIXALUM-3
---------------- 3 3/16”------- 5/16"-------------350 LBS - - - 1/2" - 5/8"
ALUMINUM (6063) WITH STAINLESS STEEL FIX PIN & STAINLESS WASHER
STAINLESS----------
FIXSTAIN-3
---------------- 3 3/16”------- 5/16”-------------600 LBS - - - 1/2” - 5/8”
STAINLESS (304) WITH STAINLESS STEEL FIX PIN & STAINLESS WASHER
STEEL----------------
FIX-4
- -------------------------- 4”------------- 13/32"------------440 LBS - - - 5/8" - 3/4"
STEEL (1015) WITH FIXED STEEL PIN & BRASS WASHER
STEEL----------------
FIXBRASS-4
- -------------- 4”------------- 13/32"------------352 LBS - - - 5/8" - 3/4"
STEEL (1015) WITH FIXED BRASS PIN & BRASS WASHER
ALUMINUM- -------
FIXALUM-4
---------------- 4”------------- 13/32”------------500 LBS - - - 5/8” - 3/4”
ALUMINUM (6063) WITH STAINLESS STEEL FIX PIN & WASHER
STAINLESS ---------
FIXSTAIN-4
---------------- 4”------------- 13/32”------------750 LBS - - - 5/8” - 3/4”
STAINLESS (304) WITH STAINLESS STEEL FIX PIN & STAINLESS WASHER
STEEL----------------
FIX-6
- -------------------------- 6”------------- 1/2"---------------650 LBS - - - 3/4" - 1"
STEEL (1015) WITH FIXED STEEL PIN & BRASS WASHER
STEEL----------------
FIXBRASS-6
- -------------- 6”------------- 1/2"---------------520 LBS - - - 3/4" - 1"
STEEL (1015) WITH FIXED BRASS PIN & BRASS WASHER
ALUMINUM- -------
FIXALUM-6
---------------- 6”------------- 1/2"---------------650 LBS - - - 3/4" - 1"
ALUMINUM (6063) WITH STAINLESS STEEL FIX PIN & WASHER
STAINLESS----------
FIXSTAIN-6
---------------- 6”------------- 1/2”---------------900 LBS - - - 3/4” - 1”
STAINLESS (304) WITH STAINLESS STEEL FIX PIN & STAINLESS WASHER
STEEL----------------
FIX-8
- -------------------------- 8”------------- 5/8"---------------800 LBS - - - 29/32" -1 1/8"
STEEL (1015) WITH FIXED STEEL PIN & BRASS WASHER
STEEL----------------
FIXBRASS-8
- -------------- 8”------------- 5/8"---------------640 LBS - - - 29/32" 1 1/8"
STEEL (1015) WITH FIXED BRASS PIN & BRASS WASHER
STAINLESS----------
FIXSTAIN-8
---------------- 8”------------- 5/8”---------------1200 LBS - - - 29/32” 1 1/8”
ALUMINUM (6063) WITH STAINLESS STEEL FIX PIN & WASHER
TYPE OF MODEL L D WEGHT D/S
MATERIAL NO. LENGTH PIN DIA. LOAD PER CROSS SECTION
PAIR
STEEL----------------
FIXGR-3
-------------------3 3/16”---------- 5/16" - - - - 300 LBS - - 1/2" - - -5/8"
STEEL (1015) WITH FIXED STEEL PIN,BRASS WASHER & GREASE FITTING
STEEL----------------
FIXGR-4
-------------------4”---------------- 13/32" - - - 440 LBS - - 5/8" - - -3/4"
STEEL (1015) WITH FIXED STEEL PIN,BRASS WASHER & GREASE FITTING
STEEL----------------
FIXGR-6
-------------------6”---------------- 1/2" - - - - 650 LB - - 3/4" - --1"
STEEL (1015) WITH FIXED STEEL PIN,BRASS WASHER & GREASE FITTING
STEEL----------------
FIXGR-8
-------------------8”---------------- 5/8" - - - - 800 LBS - - 29/32" - -1 1/8"
STEEL (1015) WITH FIXED STEEL PIN,BRASS WASHER & GREASE FITTING
STEEL----------------
FIXGR-10
-----------------10”- ------------- 3/4" - - - - 1000 LBS - -1 1/8" - -1 7/16"
STEEL (1015) WITH FIXED STEEL PIN,BRASS WASHER & GREASE FITTING
STEEL
ALUMINUM
&
STAINLESS
FIXED STEEL HINGES WITH GREASE FITTING
STEEL & ALUMINUM HINGES FOR SWING GATES
(sold ea.)
(sold ea.)

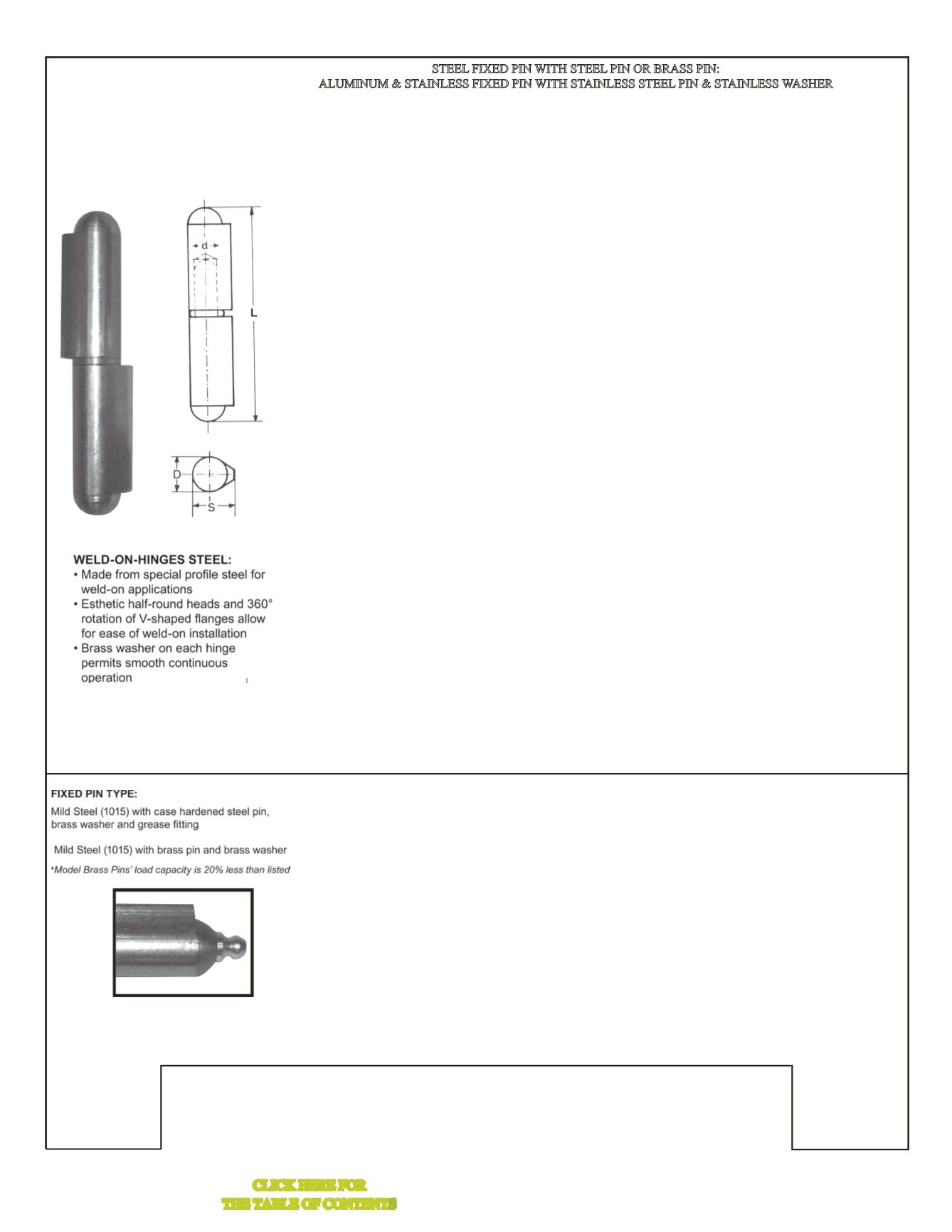

STEEL FIXED PIN WITH STEEL PIN OR BRASS PIN:
ALUMINUM & STAINLESS FIXED PIN WITH STAINLESS STEEL PIN & STAINLESS WASHER
(mild steel (1015) with case-hardened steel pin and brass washer
*fixed pin type (mild steel (1015) with BRASS pin and brass washer
