216
Orleans Ornamental Iron & Casting Dist.,Inc.
2860 Arts St., New Orleans, La. 70122
Tel: (504) 945-4466 Fax: (504) 947-4363 Toll: (800)824-3608

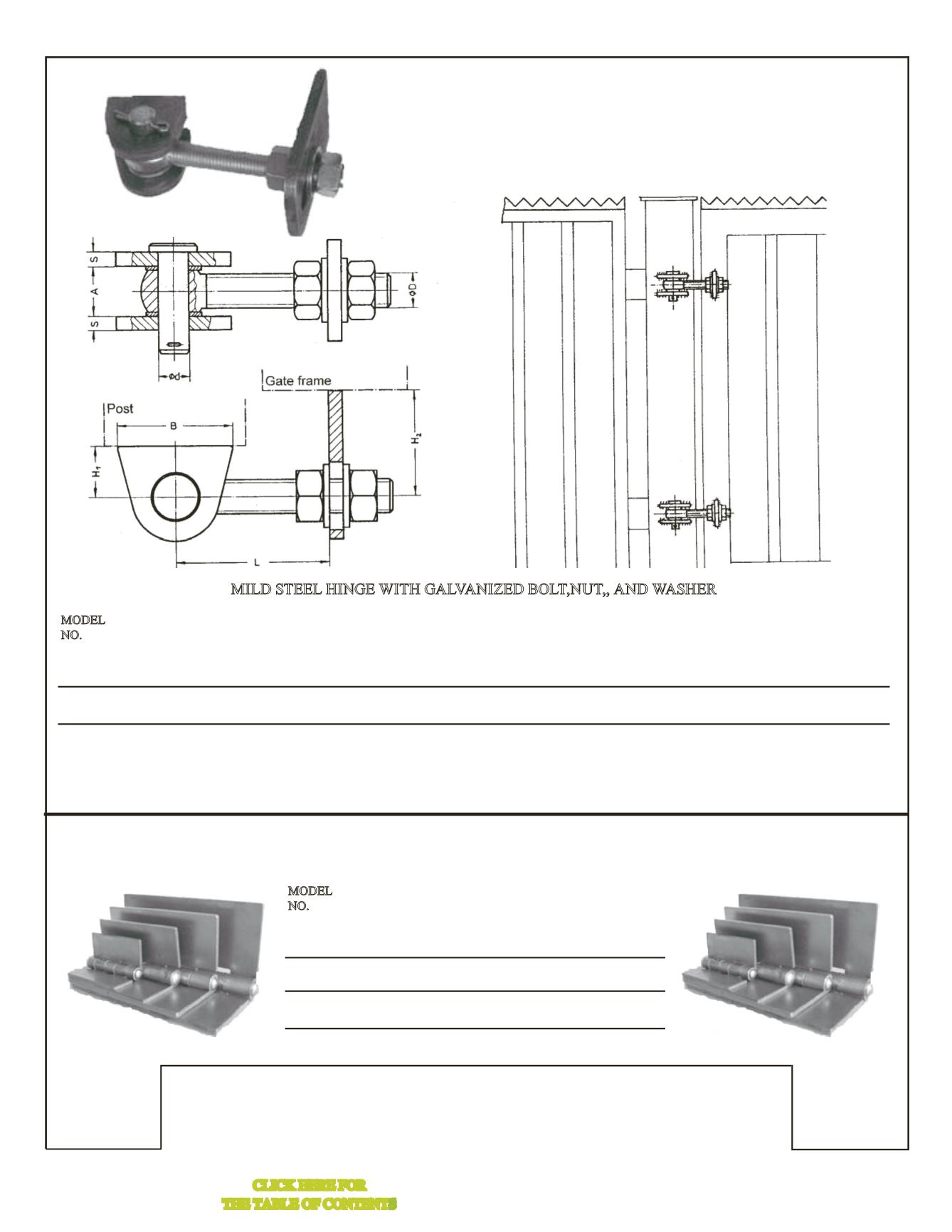

The H77 weld-on gate hinge is specifically designed for steel gates.
there are four different pin diameters ranging from 1/2" to 1" for a
variety of applications including gate doors;both walk-through and
drive-through.The easy weld-on application and adjustability of the
nut make this hinge very attractive.the H77 series is very strong and
gives a professional look.
MILD STEEL HINGE WITH GALVANIZED BOLT,NUT,, AND WASHER
MODEL PIN EYE L L H2 H2 LOAD
NO. DIA, WIDTH THICKNESS H1 B MIN. MAX. MIN. MAX. PER/PAIR
H77-016 5/8" 1" 5/16" 1 1/8" 2 1/8" 1" 3 5/8" 2 1/8" 2 11/16" 660
H77-020 3/4" 1 3/16" 5/16" 1 3/8" 3 1/8" 1 3/8" 4" 3 7/16" 4 3/16" 990
H77-024 1" 1 3/8" 13/32" 1 3/8" 3 1/8" 1 9/16" 4 3/8" 3 1/2" 4 9/32" 1320
NOTE:All drwawings are for reference only
Heavy-duty design with non-removable pin and five knuckles in plain steel for application such as steel
doors,industrial equipment,access panels,etc.Anon-swaged hinge specifically designed for weld-on
applications with no holes to fill and a professional appearance in 4 common sizes.
MODEL steel
NO. description load capacity per pair
H18-050 2" x 2" 440 lbs per pair
H18-075 3" x 3" 660 lbs per pair
H18-100 4" x 4" 990 lbs per pair
H18-125 5" x 5" 1320 lbs per pair
STEEL HINGES FOR SWING GATES
(sold ea.)
(sold ea.)
(sold ea.)
(sold ea.)
(sold ea.)
