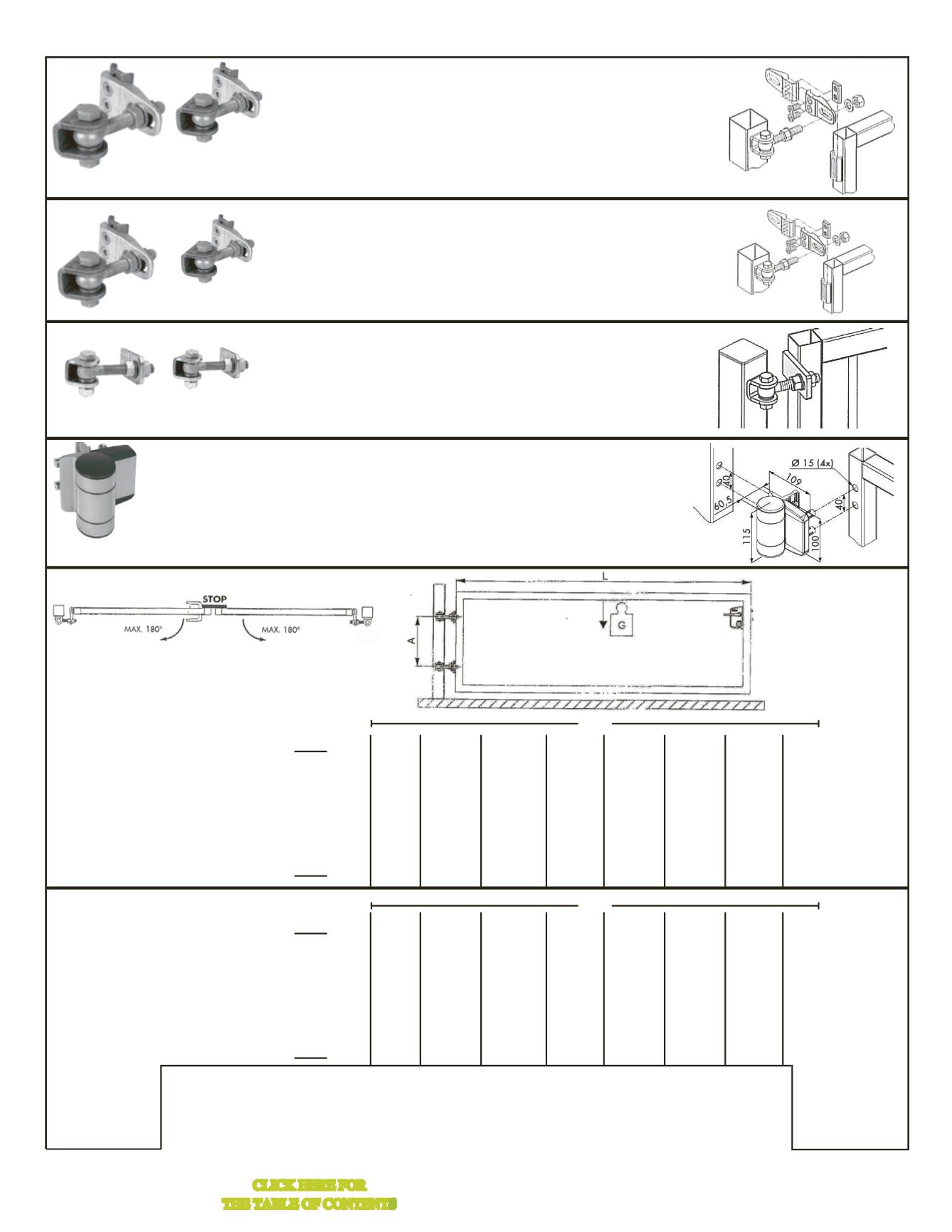

# GBMU4D20-2
# GBMU4D16-2
# GBMU16-2
.180 degree opening swing
.3 way adjustable hinge
.welds to gate and post
.galvanized eyebolt 20 mm(approx.3/4") 4" long
.7/8" adjustable in height
.sold in pairs
.180 degree opening swing
.3 way adjustable hinge
.welds to gate and post
.galvanized eyebolt 16 mm approx.5/8") 3 1/4" long
.7/8" adjustable in height
.sold in pairs
.180 degree opening swing
.2 way adjustable hinge
.welds to gate and post
.galvanized eyebolt 16 mm approx.5/8") 3 1/4" long
.7/8" adjustable in height
.sold in pairs
LOCINOX ADJUSTABLE HINGES
.180 degree double bearing hinge with 2 x 20 mm adjustability
.Contains 2 stainless steel bearing
.Fixing:Anti-theft & vandalism proof
.For gates up to 42”wide maximum (330 LBS)
.For left & right turning gates
.Powdercoated aluminium casing
.Fast and easy fixing:Quick-Fix
# GBMU4D20-2
# GBMU4D16-2
# GBMU16-2
# DINO
The Dino hinge is a double
bearing hinge in an aluminum
casing.The bearings guarantee
a smooth opening and closing of
the gate.Easy to install with
Quick-F ix fixing.
(SOLD EACH)
20” 39” 59” 79’ 98’ 118’ 138’ 157’
39” 606 lb 1430 lb 2260 lb 3086 lb 3913 lb 4740 lb 5567 lb 6393 lb
47” 469 lb 1157 lb 1847 lb 2535 lb 3225 lb 3913 lb 4603 lb 5291 lb
59” 330 lb 882 lb 1433 lb 1984 lb 2535 lb 3086 lb 3638 lb 4189 lb
79” 194 lb 606 lb 1021 lb 1433 lb 1847 lb 2260 lb 2674 lb 3086 lb
98” 110 lb 440 lb 771 lb 1102 lb 1433 lb 1764 lb 2094 lb 2425 lb
118” 55 lb 330 lb 606 lb 882 lb 1157 lb 1433 lb 1709 lb 1984 lb
138” 0 lb 251 lb 487 lb 725 lb 961 lb 1197 lb 1433 lb 1669 lb
20” 39” 59” 79’ 98’ 118’ 138’ 157’
39” 331 lb 882 lb 1433 lb 1984 lb 2535 lb 3086 lb 3636 lb 4189 lb
47” 238 lb 699 lb 1157 lb 1616 lb 2077 lb 2535 lb 2994 lb 3455 lb
59” 148 lb 514 lb 882 lb 1250 lb 1616 lb 1984 lb 2352 lb 2718 lb
79” 55 lb 331 lb 606 lb 882 lb 1157 lb 1433 lb 1709 lb 1984 lb
98” 0 lb 220 lb 441 lb 661 lb 882 lb 1102 lb 1323 lb 1543 lb
118” 0 lb 148 lb 331 lb 514 lb 699 lb 882 lb 1065 lb 1250 lb
138” 0 lb 95 lb 251 lb 410 lb 567 lb 725 lb 882 lb 1038 lb
