SIZE OF SCHEDULE 40
PIPE
FOR 1 1/2”
I.D=1.610”
OD=1.900”
Model Inside Degree Pipe Wall O.D. Center Line CENTER TO
Number Radius (r) Of Elbow Size Thick. Radius(R) Center (C-C) .
320-35.................. 1"..................... 35°..........................................................1 1/2"............ .145".............. 1.900"................1.950" (WITH A SEAM)
326-45.................. 1"..................... 45°..........................................................1 1/2"............ .145".............. 1.900"................1.950" (WITH A SEAM)
332-55.................. 1"..................... 55°..........................................................1 1/2"............ .145".............. 1.900"................1.950" (WITH A SEAM)
338-90.................. 1"..................... 90°..........................................................1 1/2"............ .145".............. 1.900"................1.950" (WITH A SEAM)
338-2.................... 1"..................... 90° W/TWO 2" TANGENTS.................1 1/2"............ .145".............. 1.900"................1.950" (NO SEAM)
338-4.................... 1"..................... 180° W/TWO 2" TANGENTS...............1 1/2"............ .145".............. 1.900"................1.950" (NO SEAM) ............... 3.900"
4461-35................ 1 5/8"............... 35°..........................................................1 1/2"............ .145".............. 1.900"................2.575" (WITH A SEAM)
4462-45................ 1 5/8"............... 45°..........................................................1 1/2"............ .145".............. 1.900"................2.575" (WITH A SEAM)
4463-55................ 1 5/8"............... 55°..........................................................1 1/2"............ .145".............. 1.900"................2.575" (WITH A SEAM)
4464-90................ 1 5/8"............... 90°..........................................................1 1/2"............ .145".............. 1.900"................2.575" (WITH A SEAM)
4733-290.............. 1 5/8"............... 90° W/TWO 2" TANGENTS.................1 1/2"............ .145".............. 1.900"................2.575" (NO SEAM)
4669-180.............. 1 5/8"............... 180° W/TWO 2" TANGENTS...............1 1/2"............ .145".............. 1.900"................2.575" (NO SEAM) ............... 5.150"
322-35.................. 2"..................... 35°..........................................................1 1/2"............ .145".............. 1.900"................2.950" (WITH A SEAM)
328-45.................. 2"..................... 45°..........................................................1 1/2"............ .145".............. 1.900"................2.950" (WITH A SEAM)
334-55.................. 2"..................... 55°..........................................................1 1/2"............ .145".............. 1.900"................2.950" (WITH A SEAM)
340-90.................. 2"..................... 90°..........................................................1 1/2"............ .145".............. 1.900"................2.950" (WITH A SEAM)
341-7.................... 2"..................... 90° W/TWO 2" TANGENTS.................1 1/2"............ .145".............. 1.900"................2.950" (NO SEAM)
341-6.................... 2"..................... 180° W/TWO 2" TANGENTS...............1 1/2"............ .145".............. 1.900"................2.950" (NO SEAM) ............... 5.900"
7123-45................ 5"..................... 45°..........................................................1 1/2"............ .145".............. 1.900"................5.950" (NO SEAM)
7125-55................ 5"..................... 55°..........................................................1 1/2"............ .145".............. 1.900"................5.950" (NO SEAM)
7127-90................ 5"..................... 90°..........................................................1 1/2"............ .145".............. 1.900"................5.950" (NO SEAM)
7129-7.................. 5"..................... 90° W/TWO 2" TANGENTS.................1 1/2"............ .145".............. 1.900"................5.950" (NO SEAM)
7134-B................. 5"..................... 180° W/TWO 3" TANGENTS...............1 1/2"............ .145".............. 1.900"................5.950" (NO SEAM) ............... 11.900" (UNTRIMMED)
NOTE: ALL OF THE 5" RADIUS ELBOWS ARE WITHOUT A SEAM
Elbow 35 degree
(With a seam)
Elbow 45 degree
(With a seam)
Elbow 55 degree
(With a seam)
Elbow 90 degree
(With a seam)
Elbow 90 degree
with two 2" tangents
(Without a seam)
Elbow 180 degree
with two 2" tangents
(Without a seam)

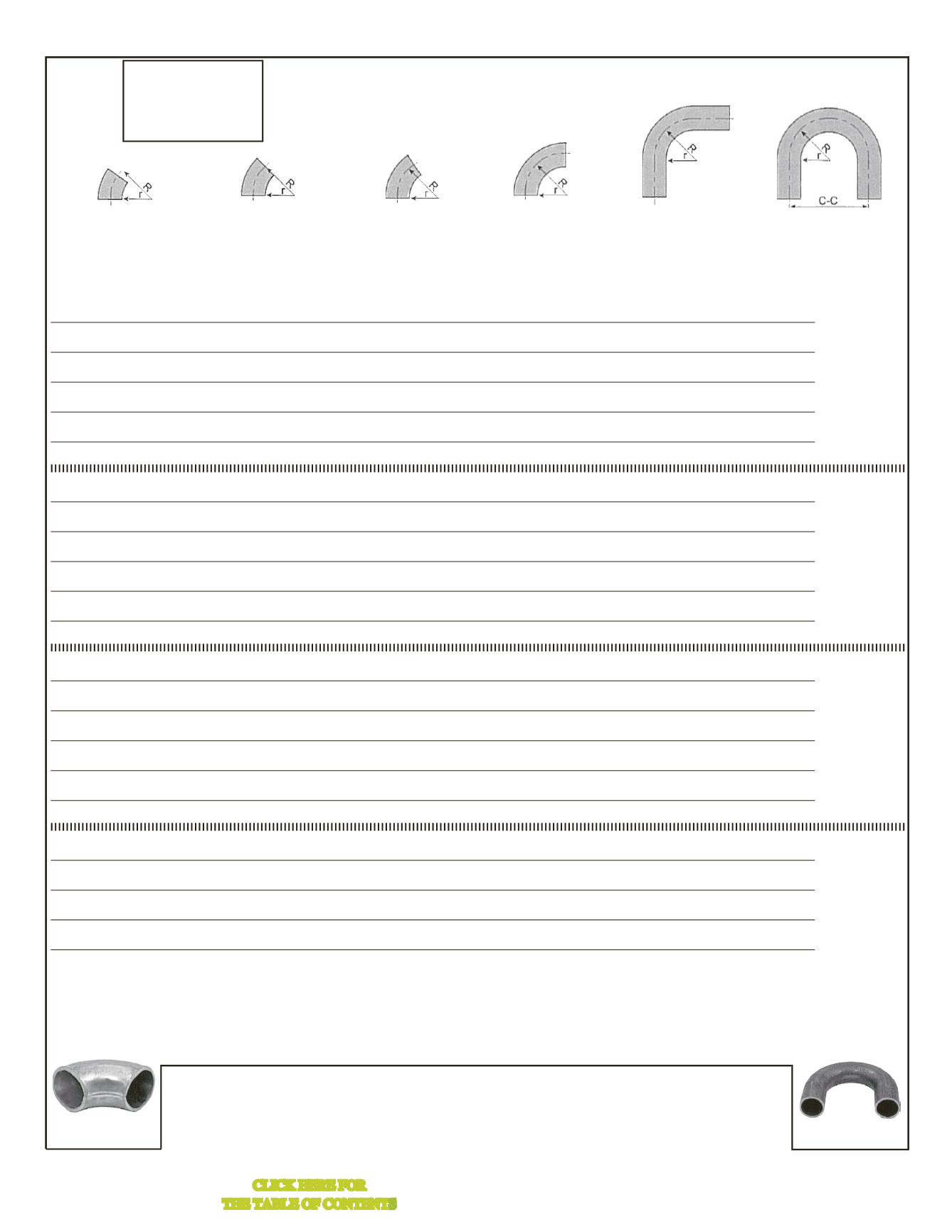

ELBOWS FOR 1 1/2” SCH. 40 PIPE
With a
seam
Without a
seam
MADE IN
U.S.A.
